NON-COMBUSTIBLE MATERIAL
non-combustible material
A non-combustible composite for EV/ESS applications.01Flame Test
불연재 적용 비교 테스트
-
Sponge vs Flame-Coated Sponge
-
Our Company vs Competitors Comparison
02Core Technology
| Core Technology Overview | |
|---|---|
| Firewalls, Foam, O₂ Barriers | High-Performance Non-Combustible Materials (Polymers, Ceramics, Inorganic Fibers, etc.) |
| Oil-Based & Water-Based Binders | Various Coating Methods (Spray, Gravure, Dipping, etc.) |
| Composite Materials Utilizing Non-Combustible Materials (e.g., Inorganic Fiber Composite Non-Combustible Material + Compression Pads as Mica Replacements) | |

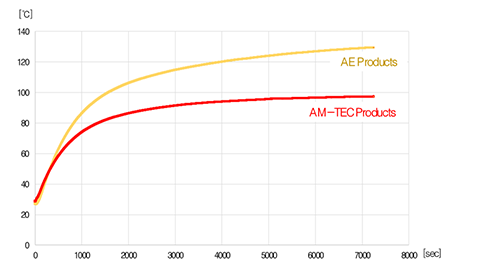

03Thermal Conductivity Comparison Test
| AE Products | AM-TEC Products | |
|---|---|---|
| Rear surface temperature at 1,000 seconds |
89℃ | 76℃ |
| Rear surface temperature at 3,000 seconds |
115℃ | 92℃ |
| Rear surface temperature at 5,000 seconds |
124℃ | 96℃ |
| Rear surface temperature at 7,000 seconds |
127℃ | 97℃ |
04Product Features
| Product Features | |
|---|---|
| 01 | Application of nano-structured materials using inorganic ceramics (0.1 ~ 100nm) |
| 02 | Prevention of flame propagation through barrier technology |
| 03 | High-strength material applicable due to high elongation |
| 04 | Application of a special binder |
| 05 | Eco-friendly product with minimized VOC emissions |
05Product Description

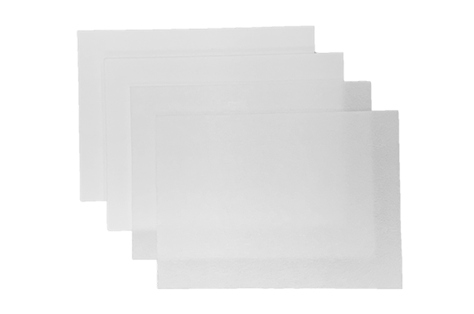

01ACS Series
| Properties | Unit | Condition | Test Result | TEST Method |
|---|---|---|---|---|
| Color | Visual | - | White | - |
| Density | g/cm3 | - | 0.3 ~ 0.5 | ASTM D792 KS M 6672 |
| Thickness | mm | - | 2 ~ 15 | ASTM D3767 |
| Flammability | UL94 | - | V0 | UL94 V |
| Thermal Conductivity | W/mK | - | < 0.03 | ASMT C518 |
| Compression Load | kpa | @20% | 50 ~ 80 | ASTM D3574 |
| @40% | 100 ~ 600 | - | ||
| Insulation resistance | Ω | 500VDC / 60sec | >10¹¹ | ASTM D257 |
| Withstand voltage | mA | 4.25kVDC / 60sec | < 0.01 | ASTM D149 |

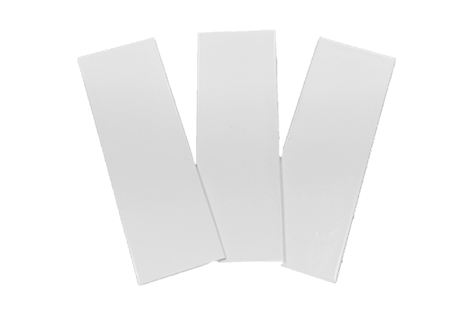

02AGB Series
| Properties | Unit | Condition | Test Result | TEST Method |
|---|---|---|---|---|
| Color | Visual | - | White / Gray | - |
| Density | g/cm3 | - | 0.3 ~ 0.5 | ASTM D792 KS M 6672 |
| Thickness | mm | - | 2 ~ 15 | ASTM D3767 |
| Flammability | UL94 | - | V0 FILM : VTM0 |
UL94 V |
| Thermal Conductivity | W/mK | - | < 0.03 | ASMT C518 |
| Compression Load | kpa | @20% | > 50 | ASTM D3574 |
| @40% | > 400 | - | ||
| Insulation resistance | Ω | 500VDC / 60sec | >10¹¹ | ASTM D257 |
| Withstand voltage | mA | 4.25kVDC / 60sec | < 0.01 | ASTM D149 |
